• ELECTRICS

    gENERATOR
    Power
    All transformer isolated
    225A,120/208V, 3-Phase Edison 110/ 30 Amp twist lock
    225A, 120/208V, 3-Phase Edison 110
    (10) stage floor pockets with 4 110 Edison & 4 Stage Pin

    Portable Power:

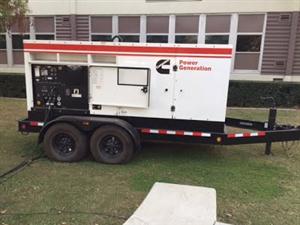

    300 KW generator multiple voltage selector:
    480/277 VAC/ 3-phase
    208/120 VAC / 3-phase
    240/120 VAC / 1- phase
    600V/480V Switchable
    Barrel lug Connection
    Camlock distribution panel
    Production Dimmers
    ETC Sensor 3, Production total – 192 Dimmers

    Main Console(s)
    ETC Ion with one fader wing, (2 monitors)
    ETC Element (2 monitors)
    Console connections are CAT5 located on stage right control panel.
    Focus Remote
    ETC hand-held Net 3

    House Lights
    De Sisti LED house lights (DMX Controllable from any console)

    Follow Spotlights
    (2) Programming & Sistemi Luce 575 follow spots
    Dimmer number and locations

    Catwalk = 1 – 25
    ·            (10) Fresnel (9) S4 Jr. Zoom (4) S4 LED Luster+ 36º (2) Altman ellipsoidal 20º (7) Par 64
    ·            House Left Tree = 26 – 30
    ·           (4) Source 4 10º 750W (2) Fresnel
    ·            House Right Tree = 31 – 35
    ·            (4) Source 4 10º 750W (2) Fresnel

    1st Electric = 36 – 62 Also 112-114
    ·            (16) Par64 (3) Fresnel (8) Scoops

    2nd Electric = 66 – 77 Then Repeats Also 115-117.
    ·             (16) Par64 (3) Fresnel (2) Scoops

    3rd Electric = 81 – 93 Then Repeats Also 118-120.
    ·              (16) Par64 (3) Fresnel (2) Scoops

    4th Electric = 94 – 106 Then Repeats Also 121-123
    ·               (6) Altman Cyc Sky 3


     Floor pockets all floor pockets repeats on wall stage left.

    RIGHT
               down stage right 133-135
    ·          stage right center 136-138
    ·          Up stage right 139-141
     LEFT
    ·           Downstage left 133-135
    ·           Stage left center 136-138
    ·           Upstage left 139-141
    CENTER
    ·           Center up stage 142-144 do not work in pocket or on wall stage left


    Lighting Instruments

    Hanging Lights
    ·      (55) Par 64
    ·      (23) Fresnel
    ·      (12) Scoops
    ·      (6) Altman Cyc Sky 3
    ·      (8) Source 4 10º 750W
    ·      (1) Source 4 19º 750W
    ·      (2) Altman Ellipsoidal 20 degree
    ·      (4) Source 4 LED Luster+ 36º


    Other Lighting Equipment
    ·      (5) Par 64
    ·      (13) Fresnel
    ·      (11) Par 16
    ·      (4) Elation 575E spot movers
    ·      (3) Elation 575 Scanners
    ·      (7) UV Cannons
    ·      (2) Martin Atomic 3000 Strobe
    ·      (7) Colortran 6” Fresnel
    ·      (16) ColorSource Par with Lime
    ·       (4) Source 4 LED Luster+ 50º

    Miscellaneous Equipment
    ·      (2) Chauvet Haze machine(s)
    ·      (1) Nimbus Dry Ice Machine
           Truss (Call for further information)
